Model: MSC-B208 (Siedentopf)
Optical System: Finite Distance Optical / *Optional Infinity Optical System
Viewing Head: Siedentopf binocular, inclined at 30°, interpupillary distance 55–75mm
Eyepieces: Wide field WF10×18mm (*Optional WF10×20mm)
Objectives:

Standard: Achromatic 4X, 10X, *20X, 40X, 100X
Optional: Plan Achromatic, Phase Contrast, Infinity Plan Achromatic

Nosepiece: Quadruple (*Optional Quintuple)
Stage: Double-layer mechanical stage 140×135mm, travel range 75×50mm (*Heating module optional)
Condenser: Abbe NA1.25 with iris diaphragm and filter
Focusing: Coaxial coarse and fine adjustment

Fine precision: 0.002mm
Coarse stroke: 37.7mm/rotation
Fine stroke: 0.2mm/rotation
Movement range: 22mm

Illumination:

Standard: Adjustable 3W LED
Optional: 6V 20W Halogen

Power Supply: 100–240V AC, 50/60Hz
Package Size: 370×260×490 mm
Gross Weight: 6.5 Kg

Optional Accessories:

Phase contrast kit
Dark field attachment
Fluorescent attachment
360° rotatable viewing head
Digital camera module
Win10 Pad / Digital display

Remove term: 100X microscope 100X microscopeRemove term: achromatic objective microscope achromatic objective microscopeRemove term: biological microscope biological microscopeRemove term: dark field microscope dark field microscopeRemove term: digital microscope digital microscopeRemove term: educational microscope educational microscopeRemove term: lab microscope lab microscopeRemove term: LED microscope LED microscopeRemove term: microscope with mechanical stage microscope with mechanical stageRemove term: MSC-B208 microscope MSC-B208 microscopeRemove term: phase contrast microscope phase contrast microscopeRemove term: plan achromatic objectives plan achromatic objectivesRemove term: professional optical microscope professional optical microscopeRemove term: scientific microscope scientific microscopeRemove term: siedentopf binocular microscope siedentopf binocular microscopeRemove term: WF10X18mm microscope WF10X18mm microscopeRemove term: wide field eyepiece microscope wide field eyepiece microscope

Back to products

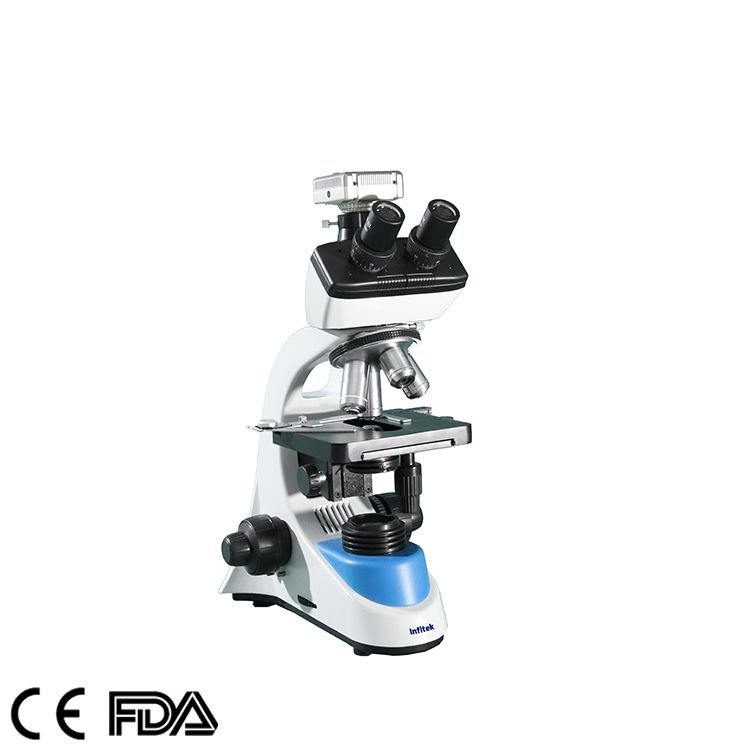

MSC-B208 Biological Microscope | Siedentopf Head & Achromatic Objectives up to 100X

The MSC-B208 Biological Microscope offers high precision with a 30° Siedentopf binocular head, wide field WF10×18mm eyepieces, and achromatic objectives from 4X to 100X. Designed for labs, universities, and clinical diagnostics with optional upgrades like phase contrast and digital imaging.
